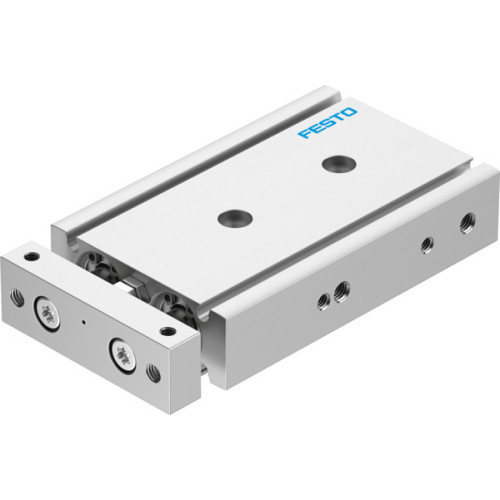

DGTZ-GF-16-30-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-16-30-P-A     Manufacturer: Festo
DGTZ-GF-16-30-P-A Twin cylinder

Availability On Request

£247.30
  • Twin cylinder with a piston diameter of 16 mm and a stroke of 30 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol of 991249
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], allowing lubricated operation
  • Corrosion resistance class CRC: 1 for low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.15 Nm with a max. effective load of 7 N dependent on stroke
  • Theoretical force at 0.6 MPa: 181 N for return stroke and 242 N for advance stroke

Read more

  • Moving mass and product weight are both 317 g, with a pneumatic connection of M5
  • Materials include RoHS-compliant wrought aluminium alloy cover and housing, NBR seals, and high-alloy stainless steel piston rod.


Product

Manufacturer Material ID -
DGTZ-GF-16-30-P-A
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
