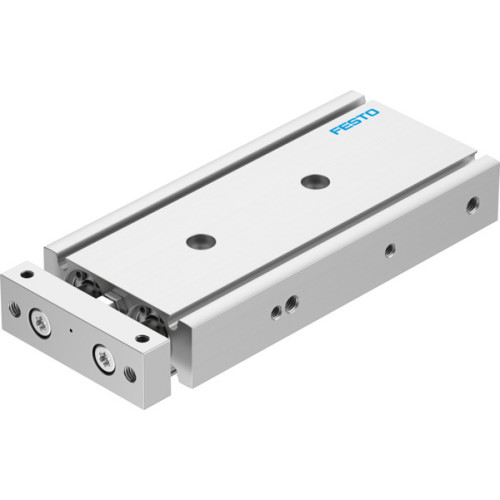

DGTZ-GF-16-60-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-16-60-P-A     Manufacturer: Festo
DGTZ-GF-16-60-P-A Twin cylinder

Availability On Request

£277.36
  • Twin cylinder with a piston diameter of 16mm and a stroke of 60mm
  • Adjustable end-position range/length of 10mm with elastic cushioning rings/plates at both ends
  • Operating mode: Yoke with double-acting operation
  • Plain-bearing guide for guidance and position detection via proximity switch
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 for low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions: 0.15 Nm, max. effective load dependent on stroke at defined distance xs: 4.7 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 181 N for return stroke and 242 N for advance stroke
  • Moving mass and product weight: 397g, with pneumatic connection M5

Read more

  • RoHS-compliant materials including wrought aluminium alloy cover, NBR seals, anodised wrought aluminium alloy housing, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-16-60-P-A
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£277.36
