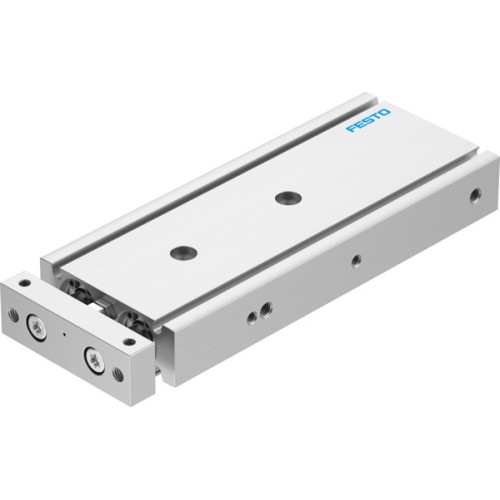

DGTZ-GF-16-80-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-16-80-P-A     Manufacturer: Festo
DGTZ-GF-16-80-P-A Twin cylinder

Availability On Request

£295.13
  • Twin cylinder with a piston diameter of 16 mm and a stroke of 80 mm
  • Adjustable end-position range of 10 mm with elastic cushioning rings/plates at both ends
  • Operating mode: Yoke, double-acting
  • Plain-bearing guide with position detection via proximity switch
  • Operating pressure range: 0.1 MPa to 1.0 MPa (1 to 8 bar)
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4]), lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III, Cleanroom class: Class 6 (ISO 14644-1)
  • Ambient temperature range: -10°C to 80°C
  • Impact energy in end positions: 0.15 Nm, Max. effective load: 3.7 N

Read more

  • Theoretical force at 0.6 MPa: Return stroke - 181 N, Advance stroke - 242 N
  • Moving mass and product weight: 451 g
  • Pneumatic connection: M5, RoHS-compliant materials
  • Materials: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Anodised wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGTZ-GF-16-80-P-A
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£295.13
