8100578

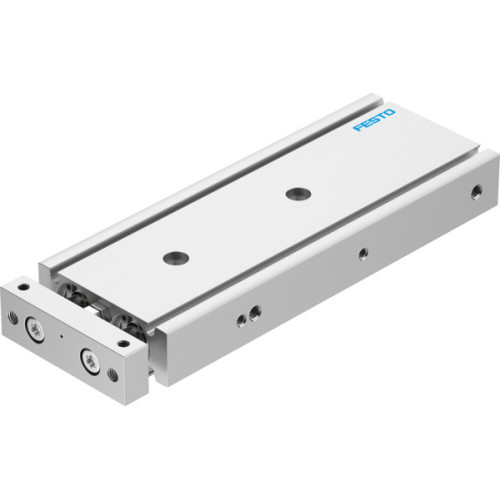

DGTZ-GF-16-90-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-16-90-P-A     Manufacturer: Festo
DGTZ-GF-16-90-P-A Twin cylinder

Availability On Request

£303.32
  • Twin cylinder with a piston diameter of 16 mm and a stroke of 90 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol number 991249
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.15 Nm, with a moving mass and product weight of 478 g
  • Max. effective load dependent upon stroke at defined distance xs: 3.3 N

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi) is 181 N for return stroke and 242 N for advance stroke
  • Pneumatic connection: M5, materials include RoHS-compliant wrought aluminium alloy for cover and housing, NBR for seals, and high-alloy stainless steel for piston rod.


Product

Manufacturer Material ID -
DGTZ-GF-16-90-P-A
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£303.32
