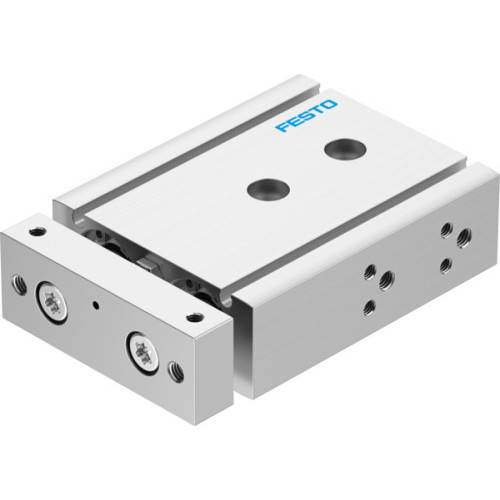

DGTZ-GF-20-10-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-20-10-P-A     Manufacturer: Festo
DGTZ-GF-20-10-P-A Twin cylinder

Availability On Request

£252.77
  • Twin cylinder with a piston diameter of 20 mm and a stroke of 10 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with LABS (PWIS) conformity to VDMA24364 zone III
  • Corrosion resistance class CRC: 1 - Low corrosion stress, suitable for cleanroom class 6
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Ambient temperature range from -10°C to 80°C, impact energy in end positions is 0.2 Nm
  • Max. effective load dependent upon stroke at defined distance xs is 16.5 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi) is 283 N for return stroke and 376 N for advance stroke

Read more

  • Moving mass and product weight are both 411 g, with a pneumatic connection of M5
  • Materials include RoHS-compliant wrought aluminium alloy cover and housing, NBR seals, and high-alloy stainless steel piston rod.


Product

Manufacturer Material ID -
DGTZ-GF-20-10-P-A
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£252.77
