8100608

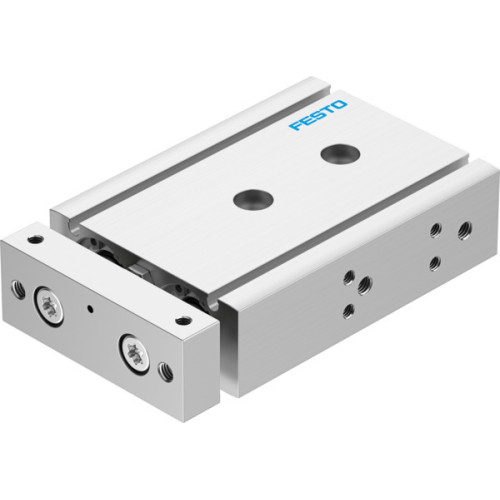

DGTZ-GF-20-20-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-20-20-P-A     Manufacturer: Festo
DGTZ-GF-20-20-P-A Twin cylinder

Availability Back Order

£259.60
  • Twin cylinder with a stroke of 20 mm
  • Adjustable end-position range of 10 mm
  • Piston diameter: 20 mm
  • Operating mode: Yoke drive unit
  • Elastic cushioning rings/plates at both ends for cushioning
  • Mounting position: optional
  • Plain-bearing guide for guidance
  • Position detection via proximity switch
  • Operating pressure range: 0.1 MPa to 8 bar
  • Double-acting operation

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C
  • Impact energy in end positions: 0.2 Nm
  • Max. effective load at 14.2 N dependent upon stroke
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 283 N (return stroke) and 376 N (advance stroke)
  • Moving mass and product weight: 449 g
  • Pneumatic connection: M5
  • RoHS-compliant materials used
  • Material cover: Wrought aluminium alloy
  • Material seals: NBR
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DGTZ-GF-20-20-P-A
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
