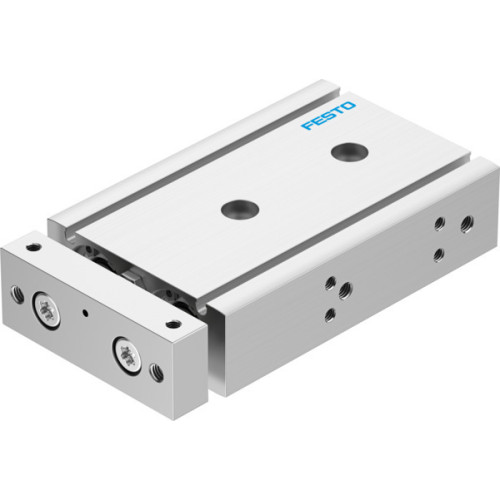

DGTZ-GF-20-30-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-20-30-P-A     Manufacturer: Festo
DGTZ-GF-20-30-P-A Twin cylinder

Availability On Request

£267.79
  • Twin cylinder with a piston diameter of 20 mm and a stroke of 30 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating mode: Yoke, double-acting
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with an operating pressure range from 0.1 MPa to 8 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, ambient temperature range from -10°C to 80°C
  • Impact energy in end positions: 0.2 Nm, max. effective load dependent on stroke at defined distance xs: 12.4 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 283 N (return stroke) and 376 N (advance stroke)

Read more

  • Moving mass and product weight: 486 g
  • Pneumatic connection: M5, RoHS-compliant materials used
  • Materials: Wrought aluminium alloy cover, NBR seals, anodised wrought aluminium alloy housing, high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-20-30-P-A
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£267.79
