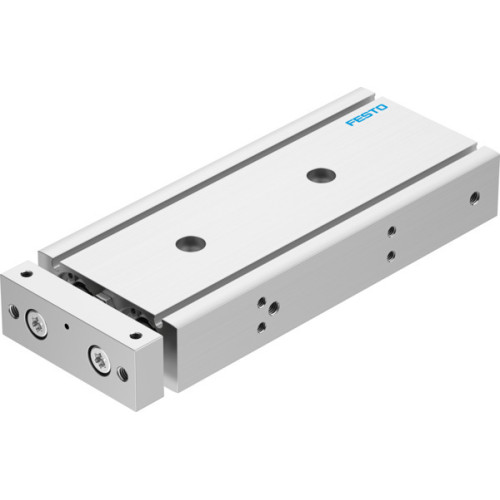

DGTZ-GF-20-80-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-20-80-P-A     Manufacturer: Festo
DGTZ-GF-20-80-P-A Twin cylinder

Availability On Request

£323.81
  • Twin cylinder with a piston diameter of 20 mm and a stroke of 80 mm
  • Adjustable end-position range of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with LABS (PWIS) conformity to VDMA24364 zone III
  • Cleanroom class 6 compliant and low corrosion stress resistance (CRC: 1)
  • Suitable for compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Ambient temperature range from -10°C to 80°C, impact energy in end positions is 0.2 Nm
  • Max. effective load dependent on stroke at defined distance xs is 6.8 N
  • Theoretical force at 0.6 MPa: 283 N (return stroke) and 376 N (advance stroke)

Read more

  • Lightweight design with a moving mass and product weight of 673 g
  • Pneumatic connection: M5, materials include RoHS-compliant wrought aluminum alloy, NBR seals, anodized aluminum housing, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-20-80-P-A
Net Weight -
0.67kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£323.81
