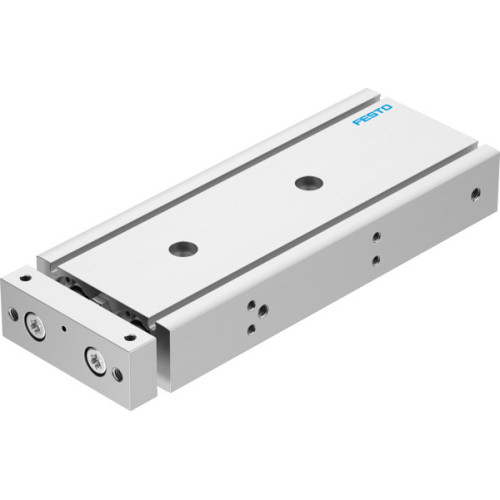

DGTZ-GF-20-90-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-20-90-P-A     Manufacturer: Festo
DGTZ-GF-20-90-P-A Twin cylinder

Availability Back Order

£334.74
  • Twin cylinder with a piston diameter of 20 mm and a stroke of 90 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol of 991249
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], allowing lubricated operation
  • Corrosion resistance class CRC: 1 for low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.2 Nm, with a max. effective load of 6.1 N dependent on stroke
  • Theoretical force at 0.6 MPa is 283 N for the return stroke and 376 N for the advance stroke

Read more

  • Lightweight design with a moving mass and product weight of 710 g
  • Pneumatic connection: M5, RoHS-compliant materials including wrought aluminium alloy cover and housing, NBR seals, and high-alloy stainless steel piston rod

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DGTZ-GF-20-90-P-A
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
