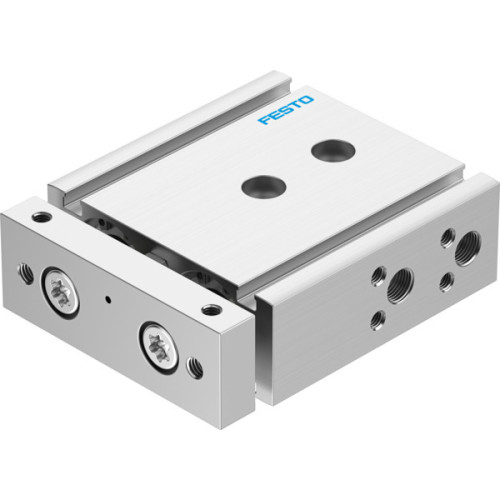

DGTZ-GF-25-10-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-25-10-P-A     Manufacturer: Festo
DGTZ-GF-25-10-P-A Twin cylinder

Availability On Request

£275.99
  • Model: DGTZ-GF-25-10-P-A
  • Twin cylinder with a piston diameter of 25 mm and a stroke of 10 mm
  • Adjustable end-position range/length: 10 mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Plain-bearing guide for smooth operation
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar
  • Mode of operation: Double-acting for efficient performance
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C for versatile applications
  • Impact energy in end positions: 0.3 Nm
  • Max. effective load dependent upon stroke at defined distance xs: 22.4 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 454 N (return stroke), 590 N (advance stroke)
  • Moving mass and product weight: 616 g for easy handling
  • Pneumatic connection: G1/8 for convenient setup
  • Materials: RoHS-compliant with cover and housing made of wrought aluminium alloy, seals made of NBR, and piston rod made of high-alloy stainless steel


Product

Manufacturer Material ID -
DGTZ-GF-25-10-P-A
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£275.99
