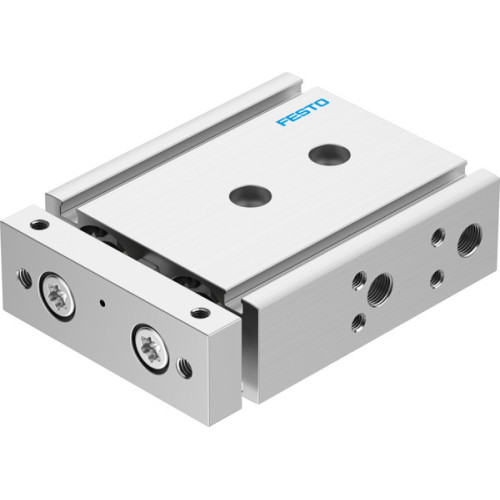

DGTZ-GF-25-20-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-25-20-P-A     Manufacturer: Festo
DGTZ-GF-25-20-P-A Twin cylinder

Availability On Request

£284.18
  • Twin cylinder with a piston diameter of 25 mm and a stroke of 20 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with LABS (PWIS) conformity and low corrosion stress
  • Cleanroom class 6 compliant with an ambient temperature range from -10°C to 80°C
  • Impact energy in end positions is 0.3 Nm with a max effective load of 19.3 N
  • Theoretical force at 0.6 MPa is 454 N for the return stroke and 590 N for the advance stroke
  • Lightweight design with a moving mass and product weight of 669 g
  • Pneumatic connection size G1/8, RoHS-compliant materials used throughout

Read more

  • Materials include wrought aluminium alloy for the cover and housing, NBR for seals, and high-alloy stainless steel for the piston rod


Product

Manufacturer Material ID -
DGTZ-GF-25-20-P-A
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£284.18
