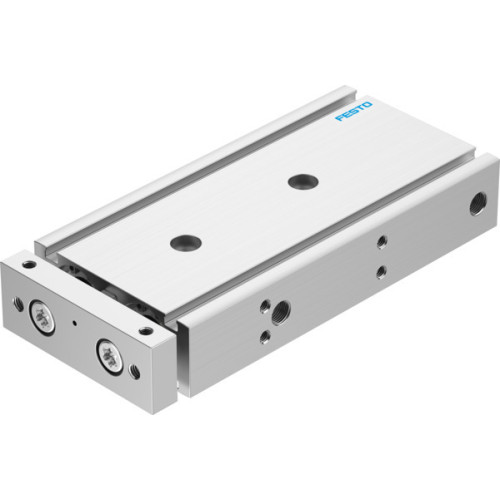

DGTZ-GF-25-90-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-25-90-P-A     Manufacturer: Festo
DGTZ-GF-25-90-P-A Twin cylinder

Availability On Request

£371.63
  • Twin cylinder with a piston diameter of 25 mm and a stroke of 90 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation with compressed air
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol of 991249
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions: 0.3 Nm, max. effective load dependent on stroke at defined distance xs: 8.1 N
  • Theoretical force at 0.6 MPa: 454 N (return stroke) and 590 N (advance stroke)
  • Moving mass and product weight: 1040 g, pneumatic connection: G1/8

Read more

  • RoHS-compliant materials including wrought aluminium alloy cover, NBR seals, anodised wrought aluminium alloy housing, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-25-90-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£371.63
