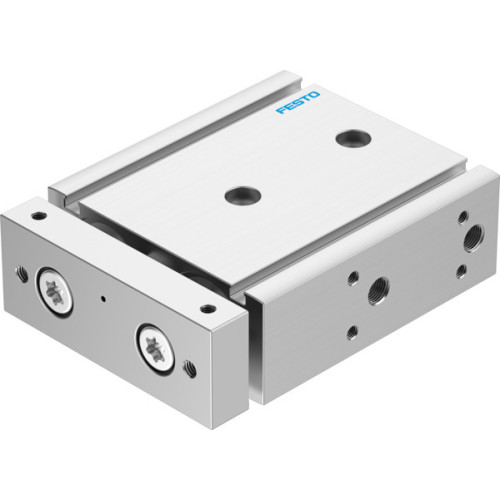

DGTZ-GF-32-30-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-32-30-P-A     Manufacturer: Festo
DGTZ-GF-32-30-P-A Twin cylinder

Availability On Request

£330.64
  • Twin cylinder with a piston diameter of 32 mm and a stroke of 30 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, suitable for double-acting operation with compressed air
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol of 991249
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.4 Nm, with a max. effective load of 25.6 N dependent on stroke
  • Theoretical force at 0.6 MPa: 724 N (return stroke) and 966 N (advance stroke)
  • Moving mass and product weight are both 1217 g

Read more

  • Pneumatic connection: G1/8, materials include RoHS-compliant wrought aluminium alloy, NBR seals, anodised housing, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-32-30-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£330.64
