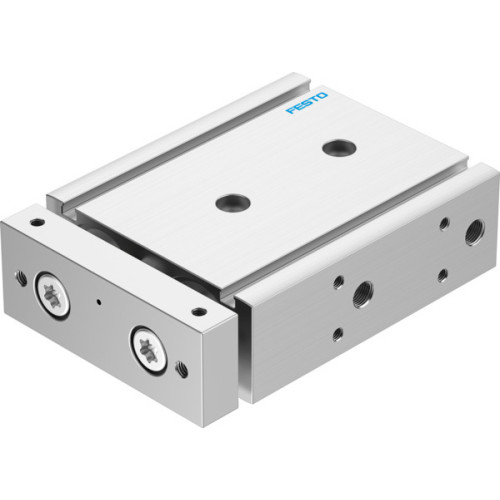

DGTZ-GF-32-40-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-32-40-P-A     Manufacturer: Festo
DGTZ-GF-32-40-P-A Twin cylinder

Availability On Request

£352.49
  • Model: DGTZ-GF-32-40-P-A
  • Twin cylinder with a piston diameter of 32 mm and a stroke of 40 mm
  • Adjustable end-position range/length: 10 mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: Optional
  • Guide: Plain-bearing guide for guidance
  • Position detection: Via proximity switch with symbol 991249
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar
  • Mode of operation: Double-acting

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C
  • Impact energy in end positions: 0.4 Nm
  • Max. effective load dependent upon stroke at defined distance xs: 22.5 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 724 N (return stroke), 966 N (advance stroke)
  • Moving mass and product weight: 1300 g
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, cover made of wrought aluminium alloy, seals made of NBR, housing made of anodised wrought aluminium alloy, piston rod made of high-alloy stainless steel


Product

Manufacturer Material ID -
DGTZ-GF-32-40-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
