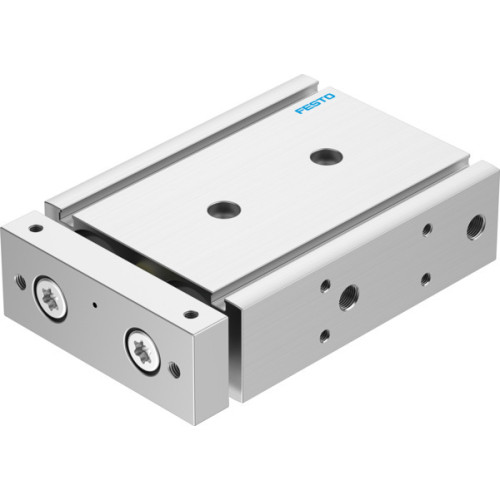

DGTZ-GF-32-50-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-32-50-P-A     Manufacturer: Festo
DGTZ-GF-32-50-P-A Twin cylinder

Availability On Request

£367.52
  • Model: DGTZ-GF-32-50-P-A
  • Twin cylinder with a stroke of 50mm
  • Adjustable end-position range/length: 10mm
  • Piston diameter: 32mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Plain-bearing guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar
  • Mode of operation: Double-acting

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 80°C
  • Impact energy in end positions: 0.4Nm
  • Max. effective load dependent upon stroke at defined distance xs: 19.9N
  • Theoretical force at 0.6MPa (6 bar, 87 psi), return stroke: 724N
  • Theoretical force at 0.6MPa (6 bar, 87 psi), advance stroke: 966N
  • Moving mass: 1384g
  • Product weight: 1384g
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy
  • Material seals: NBR
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note: RoHS-compliant materials, lubricated operation possible


Product

Manufacturer Material ID -
DGTZ-GF-32-50-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£367.52
