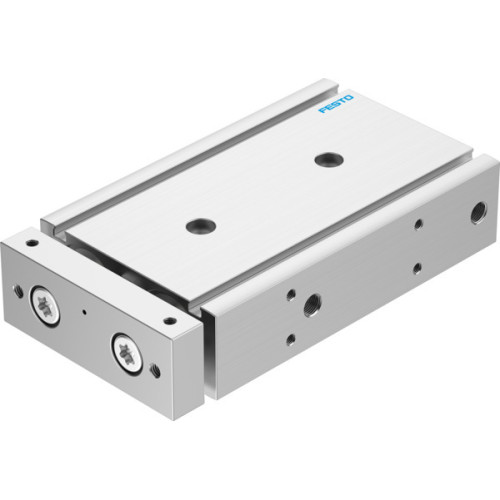

DGTZ-GF-32-80-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-32-80-P-A     Manufacturer: Festo
DGTZ-GF-32-80-P-A Twin cylinder

Availability On Request

£411.25
  • Twin cylinder with a piston diameter of 32mm and a stroke of 80mm
  • Adjustable end-position range/length of 10mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, with a double-acting mode of operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch, suitable for compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.4 Nm, with a moving mass and product weight of 1635g
  • Theoretical force at 0.6 MPa is 724N for the return stroke and 966N for the advance stroke
  • Pneumatic connection: G1/8, RoHS-compliant materials including wrought aluminium alloy, NBR seals, anodised wrought aluminium alloy housing, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-32-80-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£411.25
