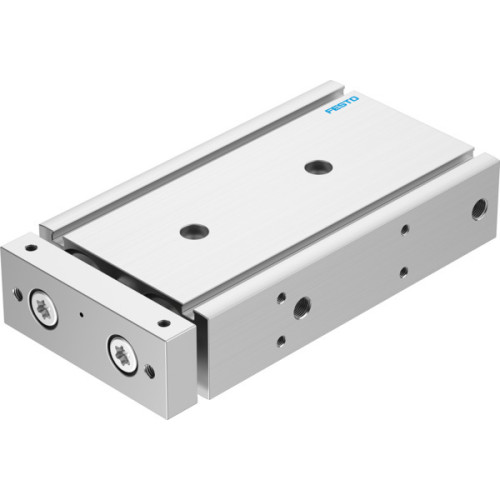

DGTZ-GF-32-90-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-32-90-P-A     Manufacturer: Festo
DGTZ-GF-32-90-P-A Twin cylinder

Availability On Request

£426.27
  • Twin cylinder with a piston diameter of 32 mm and a stroke of 90 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.1 MPa to 8 bar, with a mode of operation as double-acting
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], with lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions: 0.4 Nm, max. effective load dependent on stroke at defined distance xs: 12.2 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi) is 724 N for the return stroke and 966 N for the advance stroke
  • Moving mass and product weight are both 1719 g, with a pneumatic connection of G1/8
  • Materials include RoHS-compliant wrought aluminium alloy for the cover, NBR for seals, anodised wrought aluminium alloy for the housing, and high-alloy stainless steel for the piston rod


Product

Manufacturer Material ID -
DGTZ-GF-32-90-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£426.27
