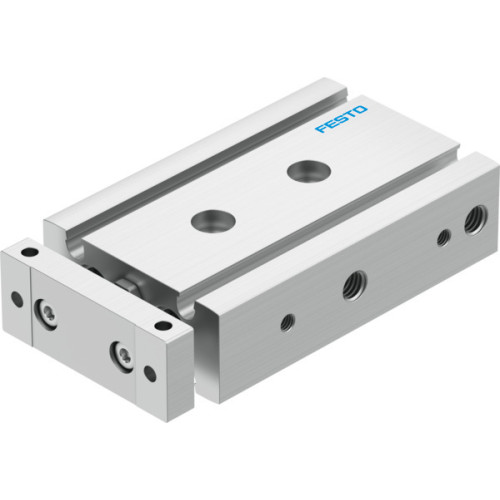

DGTZ-GF-6-20-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-6-20-P-A     Manufacturer: Festo
DGTZ-GF-6-20-P-A Twin cylinder

Availability On Request

£112.04
  • Twin cylinder with a piston diameter of 6 mm and a stroke of 20 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.2 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for low corrosion stress environments
  • Ambient temperature range from -10°C to 80°C, impact energy in end positions: 0.01 Nm
  • Max. effective load dependent upon stroke at defined distance xs: 1.2 N, moving mass of 19 g
  • Theoretical force at 0.6 MPa: 18.6 N (return stroke) and 34 N (advance stroke)
  • Product weight: 98 g, pneumatic connection: M5, RoHS-compliant materials used

Read more

  • Materials: Wrought aluminium alloy cover, NBR seals, anodised wrought aluminium alloy housing, high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-6-20-P-A
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
