8100544

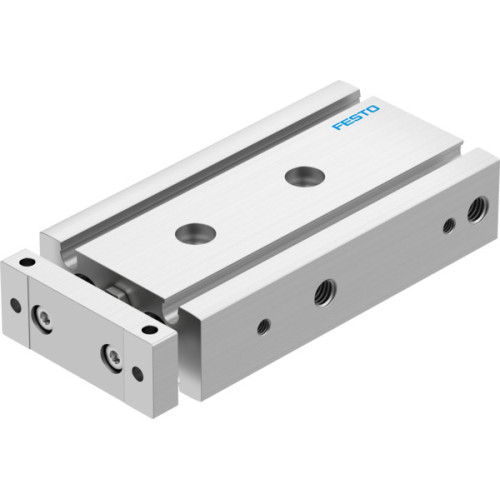

DGTZ-GF-6-30-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-6-30-P-A     Manufacturer: Festo
DGTZ-GF-6-30-P-A Twin cylinder

Availability On Request

£114.77
  • Twin cylinder with a piston diameter of 6 mm and a stroke of 30 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.2 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with LABS (PWIS) conformity and CRC class 1 corrosion resistance
  • Cleanroom class 6 according to ISO 14644-1 with an ambient temperature range of -10°C to 80°C
  • Impact energy in end positions is 0.01 Nm with a moving mass of 21 g and a product weight of 115 g
  • Pneumatic connection is M5, materials include RoHS-compliant wrought aluminum alloy, NBR seals, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGTZ-GF-6-30-P-A
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£114.77
