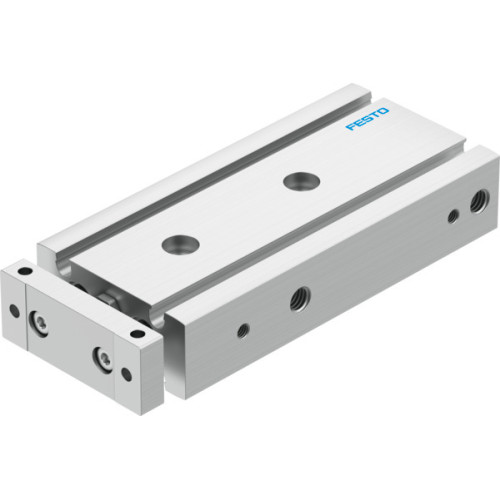

DGTZ-GF-6-40-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-6-40-P-A     Manufacturer: Festo
DGTZ-GF-6-40-P-A Twin cylinder

Availability On Request

£117.50
  • Twin cylinder with a piston diameter of 6 mm and a stroke of 40 mm
  • Adjustable end-position range/length of 10 mm with elastic cushioning rings/plates at both ends
  • Operating pressure ranges from 0.2 MPa to 8 bar, suitable for double-acting operation
  • Mounting position is optional with a plain-bearing guide for guidance
  • Position detection via proximity switch with a symbol number 991249
  • Operating medium is compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1, suitable for ambient temperatures ranging from -10°C to 80°C
  • Impact energy in end positions is 0.01 Nm, max. effective load dependent on stroke at defined distance xs is 0.8 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi) is 18.6 N for return stroke and 34 N for advance stroke

Read more

  • Moving mass is 23 g, product weight is 131 g, with a pneumatic connection of M5
  • RoHS-compliant materials include a wrought aluminium alloy cover, NBR seals, anodised wrought aluminium alloy housing, and a high-alloy stainless steel piston rod.


Product

Manufacturer Material ID -
DGTZ-GF-6-40-P-A
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£117.50
