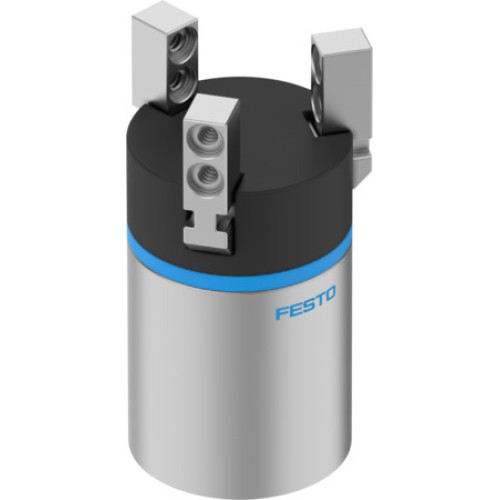

DHDS-16-A-NC Three-point gripper

Manufacturer's No: DHDS-16-A-NC     Manufacturer: Festo
DHDS-16-A-NC Three-point gripper

Availability On Request

£674.01
  • Model: DHDS-16-A-NC
  • Gripper Size: 16
  • Gripper Type: Three-point
  • Gripper Force Backup: During closing
  • Gripper Function: 3-point
  • Number of Gripper Jaws: 3
  • Stroke per Gripper Jaws: 2.5 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.5 deg

Read more

  • Max. Gripper Jaw Backlash (Sz): 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Mounting Position: Optional
  • Mode of Operation: Double-acting
  • Design: Lever, Force pilot operated motion sequence
  • Position Detection: Via Hall sensor
  • Operating Pressure: 4 bar, 8 bar
  • Max. Operating Frequency of Gripper: 4 Hz
  • Min. Opening Time at 0.6 MPa: 31 ms
  • Min. Closing Time at 0.6 MPa: 34 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Li-ion Battery Production: Metals with more than 5% copper excluded
  • Ambient Temperature: 5°C, 60°C
  • Mass Moment of Inertia: 0.139 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 50 N
  • Max. Torque at Gripper (Mx, My, Mz) Static: 2 Nm
  • Lubrication Interval for Guide Components: 10 years
  • Max. Mass per External Gripper Finger: 50 g
  • Product Weight: 99 g
  • Type of Mounting: Via female thread and dowel pin
  • Pneumatic Connection: M3
  • Material Cover Cap: PA
  • Material Housing: Hard anodised wrought aluminium alloy
  • Material Gripper Jaws: High-alloy stainless steel
  • Note on Materials: RoHS-compliant


Product

Manufacturer Material ID -
DHDS-16-A-NC
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
