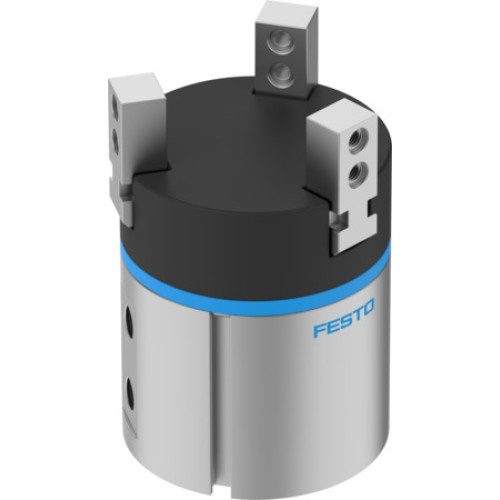

DHDS-50-A-NC Three-point gripper

Manufacturer's No: DHDS-50-A-NC     Manufacturer: Festo
DHDS-50-A-NC Three-point gripper

Availability On Request

£1,060.29
  • Model: DHDS-50-A-NC
  • Gripper Type: Three-point
  • Size: 50
  • Gripper Jaws: 3
  • Stroke per Gripper Jaws: 6 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Gripper Force Backup: During closing
  • Gripper Function: 3-point
  • Gripper Design: Lever, Force pilot operated motion sequence

Read more

  • Mounting Position: Optional
  • Operating Pressure: 4 BAR (Min), 8 BAR (Max)
  • Gripper Operating Frequency: 4 HZ
  • Opening Time at 0.6 MPa: 73 ms
  • Closing Time at 0.6 MPa: 50 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C (Min), 60°C (Max)
  • Mass Moment of Inertia: 6.18 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 250 N
  • Max. Torque at Gripper: 24 Nm (Mx, My, Mz Static)
  • Lubrication Interval for Guide Components: 10 years
  • Max. Mass per External Gripper Finger: 250 g
  • Product Weight: 932 g
  • Type of Mounting: Via female thread and dowel pin
  • Pneumatic Connection: G1/8
  • RoHS-compliant Materials
  • Material Cover Cap: PA
  • Material Housing: Hard anodised wrought aluminium alloy
  • Material Gripper Jaws: High-alloy stainless steel
  • Position Detection: Via proximity switch
  • Symbol: 995947
  • Suitability for Li-ion Battery Production: Metals with more than 5% copper excluded, exceptions for specific components.


Product

Manufacturer Material ID -
DHDS-50-A-NC
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£1,060.29
