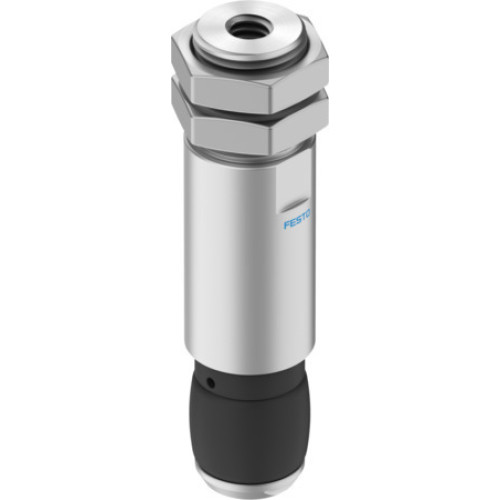

DHEB-12-E-D-E-L Bellow gripper

Manufacturer's No: DHEB-12-E-D-E-L     Manufacturer: Festo
DHEB-12-E-D-E-L Bellow gripper

Availability On Request

£133.91
  • Model: DHEB-12-E-D-E-L
  • Gripper Size: 12
  • Stroke of Bellows: 5.5 mm
  • Min. Diameter to be Gripped: 13 mm
  • Max. Diameter to be Gripped: 17 mm
  • Gripper Function: Adaptive
  • Design: Contracting Diaphragm
  • Design: Force Pilot Operated Motion Sequence
  • Operating Pressure: 5 bar, 8 bar
  • Reset Pressure: 1 bar

Read more

  • Max. Operating Frequency: 4 Hz
  • Min. Opening Time at 0.6 MPa: 20 ms
  • Min. Closing Time at 0.6 MPa: 40 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 - Moderate corrosion stress
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Ambient Temperature: 5°C to 60°C
  • Average Replacement Interval for Bellows: 0.5 years
  • Guide Value for Effective Load: 0.12 kg
  • Product Weight: 17 g
  • Type of Mounting: Via Male Thread, Via Lock Nut, Either
  • Pneumatic Connection: M5
  • Material: RoHS-compliant
  • Bellows Material: EPDM
  • Housing Material: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-12-E-D-E-L
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£133.91
