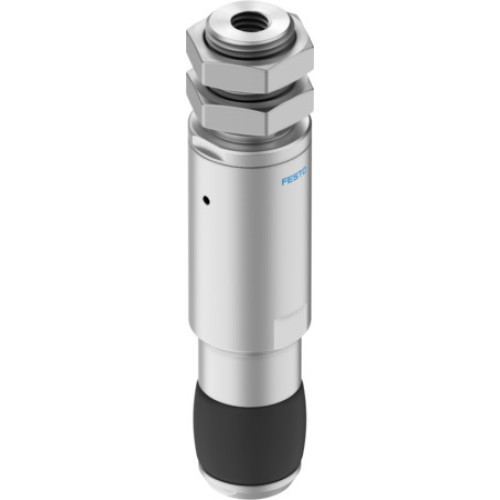

DHEB-12-E-U-E-L Bellow gripper

Manufacturer's No: DHEB-12-E-U-E-L     Manufacturer: Festo
DHEB-12-E-U-E-L Bellow gripper

Availability On Request

£232.54
  • Bellow gripper model: DHEB-12-E-U-E-L
  • Size: 12
  • Stroke of bellows: 5.5 mm
  • Gripping range: 13 mm to 17 mm
  • Operating pressure: 5 bar (min) to 8 bar (max)
  • Gripper function: Adaptive
  • Design: Contracting diaphragm with force pilot operated motion sequence
  • Guide: Basic guide
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature range: 5°C to 60°C
  • Average replacement interval for bellows: 0.5 years
  • Effective load: 0.12 kg
  • Product weight: 18 g
  • Type of mounting: Via male thread, lock nut, or either
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Bellows material: EPDM
  • Housing material: Aluminium (anodised)


Product

Manufacturer Material ID -
DHEB-12-E-U-E-L
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£232.54
