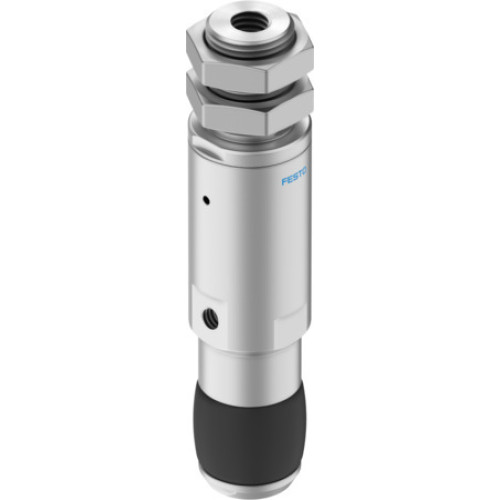

DHEB-12-E-U-E-P Bellow gripper

Manufacturer's No: DHEB-12-E-U-E-P     Manufacturer: Festo
DHEB-12-E-U-E-P Bellow gripper

Availability On Request

£232.54
  • Model: DHEB-12-E-U-E-P Bellow gripper
  • Size: 12
  • Stroke of bellows: 5.5 mm
  • Min. ø to be gripped: 13 mm
  • Max. ø to be gripped: 17 mm
  • Operating pressure: 5 bar, 8 bar
  • Reset pressure: 1 bar
  • Max. operating frequency of gripper: 4 Hz
  • Min. opening time at 0.6 MPa: 20 ms
  • Min. closing time at 0.6 MPa: 40 ms

Read more

  • Gripper function: Adaptive
  • Design: Contracting diaphragm, Force pilot operated motion sequence
  • Guide: Basic guide
  • Position detection: Without
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: 5°C, 60°C
  • Average replacement interval for the bellows: 0.5 years
  • Guide value for effective load: 0.12 kg
  • Product weight: 18 g
  • Type of mounting: Via male thread, Via lock nut, Either
  • Pneumatic connection: M3
  • Note on materials: RoHS-compliant
  • Material bellows: EPDM
  • Material housing: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-12-E-U-E-P
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£232.54
