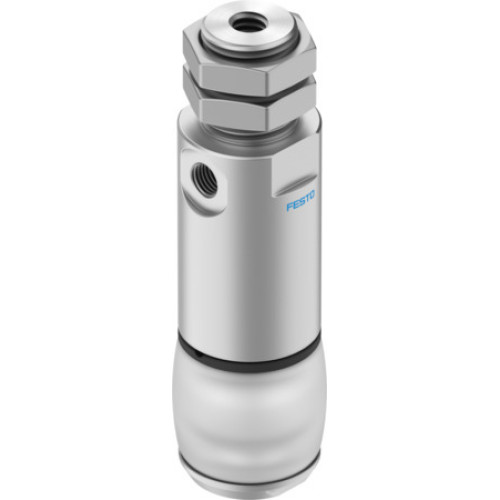

DHEB-18-E-D-S-P Bellow gripper

Manufacturer's No: DHEB-18-E-D-S-P     Manufacturer: Festo
DHEB-18-E-D-S-P Bellow gripper

Availability On Request

£174.42
  • Bellow gripper model: DHEB-18-E-D-S-P
  • Size: 18
  • Stroke of bellows: 7.5 mm
  • Gripping range: 19.5 mm to 25 mm diameter
  • Mode of operation: Single-acting, Closed
  • Gripper function: Adaptive
  • Design: Contracting diaphragm, Force pilot operated motion sequence
  • Guide: Basic guide
  • Operating pressure: 5 bar, 8 bar
  • Reset pressure: 1 bar

Read more

  • Max. operating frequency: 4 Hz
  • Min. opening time at 0.6 MPa: 20 ms
  • Min. closing time at 0.6 MPa: 50 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature range: 5°C to 60°C
  • Average replacement interval for bellows: 1 year
  • Guide value for effective load: 0.21 kg
  • Product weight: 28 g
  • Type of mounting: Via male thread, Via lock nut, Either
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Material bellows: VMQ (silicone)
  • Material housing: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-18-E-D-S-P
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£174.42
