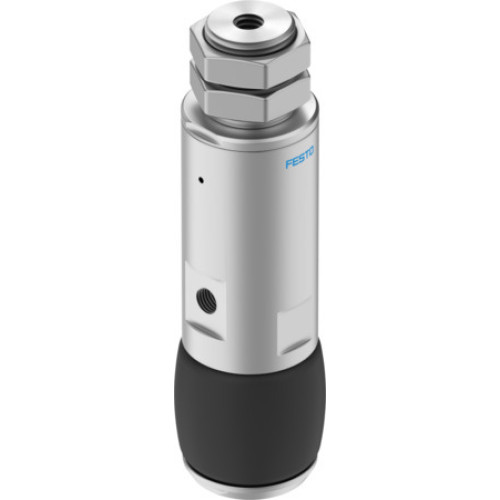

DHEB-22-E-U-E-P Bellow gripper

Manufacturer's No: DHEB-22-E-U-E-P     Manufacturer: Festo
DHEB-22-E-U-E-P Bellow gripper

Availability On Request

£281.91
  • Model: DHEB-22-E-U-E-P Bellow Gripper
  • Size: 22
  • Stroke of Bellows: 12 mm
  • Gripping Range: 24 mm (Min) - 31.5 mm (Max)
  • Mode of Operation: Single-acting, Closed
  • Gripper Function: Adaptive
  • Design: Contracting Diaphragm, Force Pilot Operated Motion Sequence
  • Guide: Basic Guide
  • Operating Pressure: 5 bar (Min), 8 bar (Max)
  • Reset Pressure: 1 bar

Read more

  • Max. Operating Frequency: 4 Hz
  • Min. Opening Time at 0.6 MPa: 30 ms
  • Min. Closing Time at 0.6 MPa: 60 ms
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Ambient Temperature: 5°C (Min), 60°C (Max)
  • Average Replacement Interval for Bellows: 0.5 years
  • Guide Value for Effective Load: 0.32 kg
  • Product Weight: 50 g
  • Type of Mounting: Via Male Thread, Lock Nut, Either
  • Pneumatic Connection: M5
  • Material: RoHS-compliant
  • Bellows Material: EPDM
  • Housing Material: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-22-E-U-E-P
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
