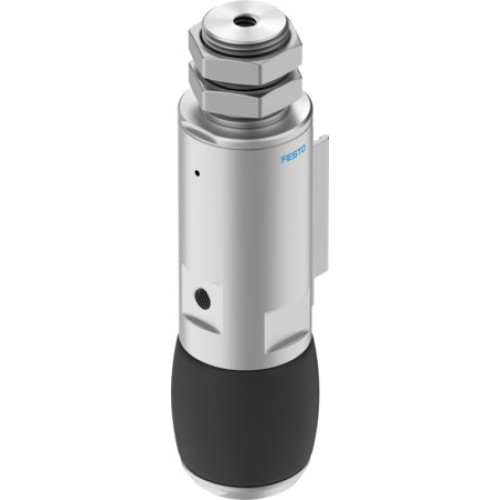

DHEB-27-E-U-E-P Bellow gripper

Manufacturer's No: DHEB-27-E-U-E-P     Manufacturer: Festo
DHEB-27-E-U-E-P Bellow gripper

Availability On Request

£296.02
  • Bellow gripper model: DHEB-27-E-U-E-P
  • Size: 27
  • Stroke of bellows: 12 mm
  • Min. diameter to be gripped: 28 mm
  • Max. diameter to be gripped: 37 mm
  • Mode of operation: Single-acting, Closed
  • Gripper function: Adaptive
  • Design: Contracting diaphragm, Force pilot operated motion sequence
  • Guide: Basic guide
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 4 bar, 8 bar
  • Reset pressure: 1 bar
  • Max. operating frequency: 4 Hz
  • Min. opening time at 0.6 MPa: 30 ms
  • Min. closing time at 0.6 MPa: 60 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: 5°C to 60°C
  • Average replacement interval for bellows: 0.5 years
  • Guide value for effective load: 0.45 kg
  • Product weight: 100 g
  • Type of mounting: Via male thread, Via lock nut, Either
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Material bellows: EPDM
  • Material housing: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-27-E-U-E-P
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
