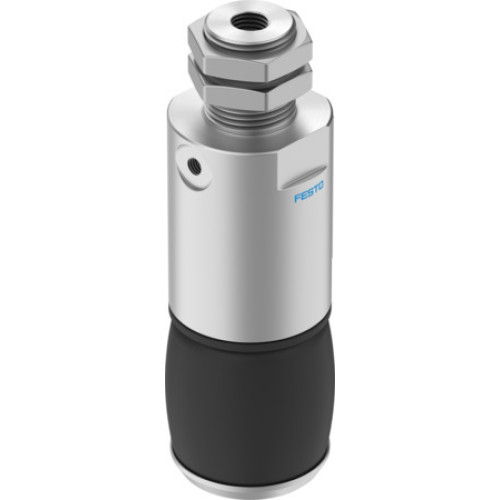

DHEB-41-E-D-E-P Bellow gripper

Manufacturer's No: DHEB-41-E-D-E-P     Manufacturer: Festo
DHEB-41-E-D-E-P Bellow gripper

Availability On Request

£248.43
  • Bellow gripper model: DHEB-41-E-D-E-P
  • Size: 41
  • Stroke of bellows: 15.5 mm
  • Gripping range: 42 mm (min ø) to 54 mm (max ø)
  • Mode of operation: Single-acting, Closed
  • Gripper function: Adaptive
  • Design: Contracting diaphragm, Force pilot operated motion sequence
  • Guide: Basic guide
  • Position detection: Via proximity switch
  • Operating pressure: 4 bar (min), 8 bar (max)

Read more

  • Reset pressure: 1 bar
  • Max. operating frequency: 4 Hz
  • Min. opening time at 0.6 MPa: 30 ms
  • Min. closing time at 0.6 MPa: 70 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: 5°C (min), 60°C (max)
  • Average replacement interval for bellows: 0.5 years
  • Guide value for effective load: 1.2 kg
  • Product weight: 280 g
  • Type of mounting: Via male thread, Via lock nut, Either
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Material bellows: EPDM
  • Material housing: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-41-E-D-E-P
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£248.43
