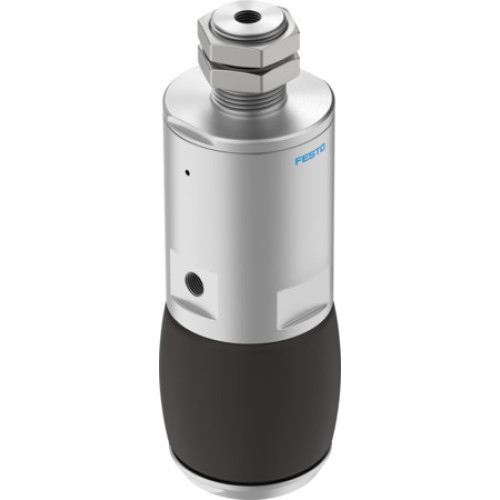

DHEB-63-E-U-E-P Bellow gripper

Manufacturer's No: DHEB-63-E-U-E-P     Manufacturer: Festo
DHEB-63-E-U-E-P Bellow gripper

Availability On Request

£429.91
  • Bellow gripper model: DHEB-63-E-U-E-P
  • Size: 63 with a stroke of bellows of 25 mm
  • Gripping range: Min. ø 66 mm to Max. ø 85 mm
  • Mode of operation: Single-acting, Closed
  • Gripper function: Adaptive
  • Design: Contracting diaphragm, Force pilot operated motion sequence
  • Guide: Basic guide
  • Position detection: Via proximity switch
  • Operating pressure: 4 BAR (Min), 8 BAR (Max)
  • Reset pressure: 1 BAR

Read more

  • Max. operating frequency: 4 HZ
  • Opening time at 0.6 MPa: 40 MS
  • Closing time at 0.6 MPa: 100 MS
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature range: 5 to 60 degrees Celsius
  • Average replacement interval for bellows: 0.5 years
  • Guide value for effective load: 5.1 KG
  • Product weight: 785 G
  • Type of mounting: Via male thread, lock nut, or either
  • Pneumatic connection: G1/8
  • Material: RoHS-compliant
  • Bellows material: EPDM
  • Housing material: Aluminium, Anodised


Product

Manufacturer Material ID -
DHEB-63-E-U-E-P
Net Weight -
0.89kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
