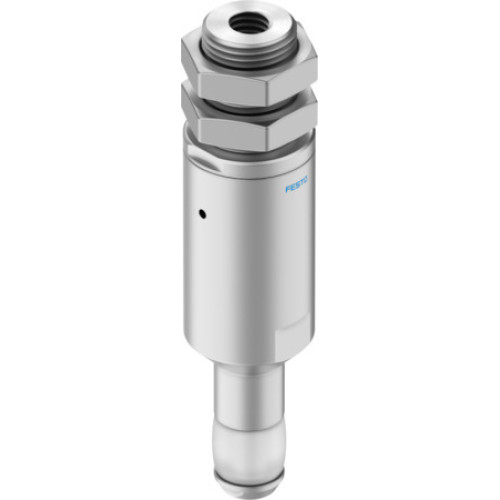

DHEB-8-E-U-S-L Bellow gripper

Manufacturer's No: DHEB-8-E-U-S-L     Manufacturer: Festo
DHEB-8-E-U-S-L Bellow gripper

Availability On Request

£244.88
  • Bellow gripper model: DHEB-8-E-U-S-L
  • Size: 8
  • Stroke of bellows: 3.5 mm
  • Gripping range: 8 mm to 11 mm
  • Operating pressure: 5 bar (min) to 8 bar (max)
  • Reset pressure: 1 bar
  • Gripper function: Adaptive
  • Design: Contracting diaphragm with force pilot operated motion sequence
  • Mounting position: Optional
  • Mode of operation: Single-acting, closed

Read more

  • Guide: Basic guide
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Lubrication: Lubricated operation possible
  • Corrosion resistance class: CRC 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: 5°C (min) to 60°C (max)
  • Average replacement interval for bellows: 1 year
  • Effective load: 0.08 kg
  • Product weight: 16 g
  • Mounting: Via male thread, lock nut, or either
  • Pneumatic connection: M5
  • Material: RoHS-compliant
  • Bellows material: VMQ (silicone)
  • Housing material: Aluminium, anodised


Product

Manufacturer Material ID -
DHEB-8-E-U-S-L
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£244.88
