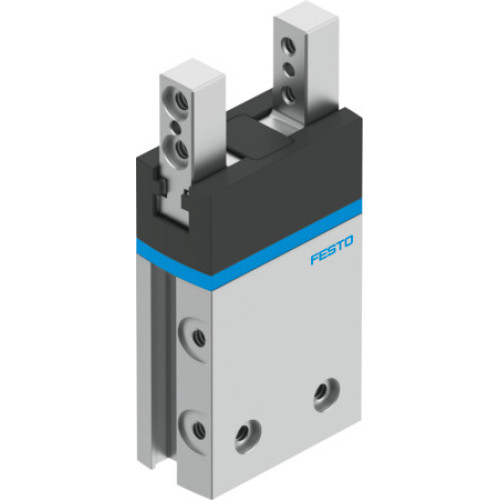

DHPS-10-A-NC Parallel gripper

Manufacturer's No: DHPS-10-A-NC     Manufacturer: Festo
DHPS-10-A-NC Parallel gripper

Availability On Request

£419.62
  • Model: DHPS-10-A-NC
  • Gripper Size: 10
  • Stroke per Gripper Jaws: 3 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.5°
  • Max. Gripper Jaw Backlash (Sz): 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.02 mm
  • Number of Gripper Jaws: 2
  • Mounting Position: Optional

Read more

  • Mode of Operation: Double-acting
  • Gripper Function: Parallel
  • Gripper Force Backup: During Closing
  • Design: Lever
  • Design: Force Pilot Operated Motion Sequence
  • Guide: Plain-bearing Guide
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 0.4 MPa, 0.8 MPa, 4 bar, 8 bar, 58 psi, 116 psi
  • Max. Operating Frequency of Gripper: 4 Hz
  • Min. Opening Time at 0.6 MPa: 58 ms
  • Min. Closing Time at 0.6 MPa: 24 ms
  • Max. Mass per External Gripper Finger: 60 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 1 (Low Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Production of Li-ion Batteries: Metals with more than 5% copper excluded, exceptions apply
  • Ambient Temperature Range: 5°C to 60°C
  • Mass Moment of Inertia: 0.081 kgcm²
  • Max. Force on Gripper Jaw (Fz) Static: 60 N
  • Max. Torque at Gripper (Mx, My, Mz) Static: 3 Nm
  • Lubrication Interval for Guide Components: 10 years
  • Product Weight: 68 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-hole, or Either
  • Pneumatic Connection: M3
  • Material: RoHS-compliant
  • Material Cover Cap: PA
  • Material Housing: Hard Anodised Wrought Aluminium Alloy
  • Material Gripper Jaws: High-alloy Stainless Steel


Product

Manufacturer Material ID -
DHPS-10-A-NC
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
