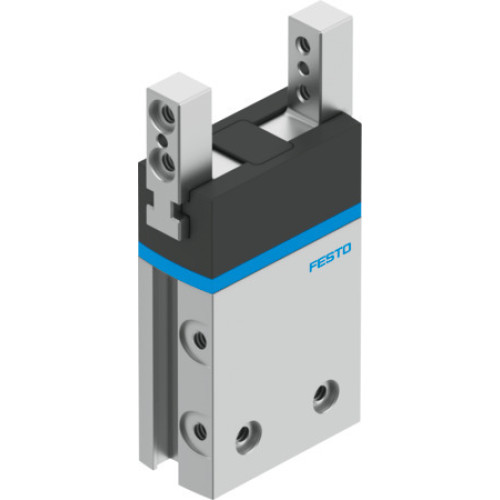

DHPS-10-A-NO Parallel gripper

Manufacturer's No: DHPS-10-A-NO     Manufacturer: Festo
DHPS-10-A-NO Parallel gripper

Availability On Request

£419.62
  • Model: DHPS-10-A-NO Parallel Gripper
  • Size: 10
  • Gripper Type: Parallel
  • Gripper Function: Double-acting, Lever design
  • Gripper Jaws: 2
  • Stroke per Gripper Jaws: 3mm
  • Max. Replacement Accuracy: 0.2mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.5°
  • Max. Gripper Jaw Backlash (Sz): 0.02mm
  • Rotationally Symmetrical: 0.2mm

Read more

  • Repetition Accuracy: 0.02mm
  • Gripper Force Backup: During opening
  • Guide: Plain-bearing guide
  • Position Detection: Via proximity switch
  • Operating Pressure: 0.4MPa, 0.8MPa, 4 bar, 8 bar, 58 psi, 116 psi
  • Max. Operating Frequency: 4Hz
  • Min. Opening Time at 0.6MPa: 19ms
  • Min. Closing Time at 0.6MPa: 30ms
  • Max. Mass per External Gripper Finger: 60g
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 0.082kgcm²
  • Max. Force on Gripper Jaw (Fz Static): 60N
  • Max. Torque at Gripper (Mx, My, Mz Static): 3Nm
  • Lubrication Interval for Guide Components: 10 years
  • Product Weight: 68g
  • Type of Mounting: Via female thread and centring sleeve, Via through-hole and centring sleeve, Either
  • Pneumatic Connection: M3
  • Material: RoHS-compliant, Cover Cap - PA, Housing - Hard anodised wrought aluminium alloy, Gripper Jaws - High-alloy stainless steel
  • Note: Lubricated operation possible, Metals with more than 5% copper excluded from use for Li-ion battery production


Product

Manufacturer Material ID -
DHPS-10-A-NO
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£419.62
