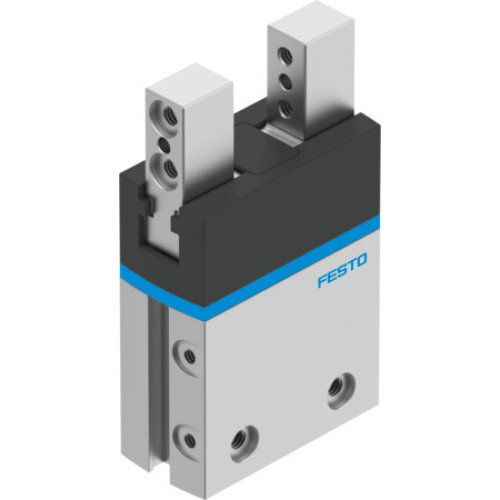

DHPS-16-A Parallel gripper

Manufacturer's No: DHPS-16-A     Manufacturer: Festo
DHPS-16-A Parallel gripper

Availability On Request

£479.55
  • DHPS-16-A Parallel gripper
  • Size: 16
  • Stroke per gripper jaws: 5 mm
  • Max. replacement accuracy: 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: 0.5 deg
  • Max. gripper jaw backlash Sz: 0.02 mm
  • Rotationally symmetrical: 0.2 mm
  • Repetition accuracy, gripper: 0.02 mm
  • Number of gripper jaws: 2
  • Mounting position: optional

Read more

  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Lever
  • Design: Force pilot operated motion sequence
  • Guide: Plain-bearing guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.2 MPa, 0.8 MPa, 2 bar, 8 bar, 29 psi, 116 psi
  • Max. operating frequency of gripper: 3 Hz
  • Min. opening time at 0.6 MPa: 33 ms
  • Min. closing time at 0.6 MPa: 41 ms
  • Max. mass per external gripper finger: 150 g
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors, and coils
  • Ambient temperature: 5°C, 60°C
  • Total gripping force, opening: 210 N
  • Total gripping force, closing: 190 N
  • Gripper force per gripper jaw, opening: 105 N
  • Gripper force per gripper jaw, closing: 96 N
  • Mass moment of inertia: 0.465 kgm^2
  • Max. force on gripper jaw Fz static: 150 N
  • Max. torque at gripper Mx static: 8 Nm
  • Max. torque at gripper My static: 8 Nm
  • Max. torque at gripper Mz static: 8 Nm
  • Lubrication interval for guide components: 10 years
  • Product weight: 184 g
  • Type of mounting: Via female thread and centring sleeve, Via through-hole and centring sleeve, Either
  • Pneumatic connection: M3
  • Material cover cap: PA
  • Material housing: Hard anodised wrought aluminium alloy
  • Material gripper jaws: High-alloy stainless steel


Product

Manufacturer Material ID -
DHPS-16-A
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
39121459
