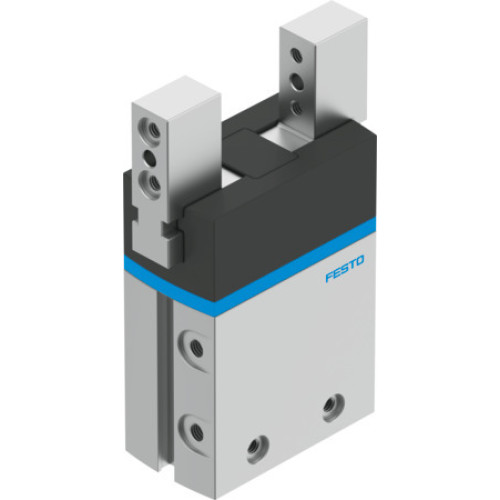

DHPS-20-A-NO Parallel gripper

Manufacturer's No: DHPS-20-A-NO     Manufacturer: Festo
DHPS-20-A-NO Parallel gripper

Availability On Request

£594.20
  • DHPS-20-A-NO Parallel gripper
  • Size: 20
  • Gripper force back-up: During opening
  • Drive system: Pneumatic
  • Gripper function: Parallel
  • Number of gripper jaws: 2
  • Stroke per gripper jaws: 6.5 mm
  • Max. replacement accuracy: 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: 0.5°
  • Max. gripper jaw backlash Sz: 0.02 mm

Read more

  • Rotationally symmetrical: 0.2 mm
  • Repetition accuracy, gripper: 0.02 mm
  • Operating pressure: 0.4 MPa, 0.8 MPa, 4 bar, 8 bar, 58 psi, 116 psi
  • Max. operating frequency of gripper: 3 Hz
  • Min. opening time at 0.6 MPa: 58 ms
  • Min. closing time at 0.6 MPa: 97 ms
  • Max. mass per external gripper finger: 250 g
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper are excluded from use
  • Ambient temperature: 5°C to 60°C
  • Mass moment of inertia: 1.521 kgcm²
  • Max. force on gripper jaw Fz static: 250 N
  • Max. torque at gripper Mx static, My static, Mz static: 14 Nm
  • Lubrication interval for guide components: 10 years
  • Product weight: 387 g
  • Type of mounting: Via female thread, centring sleeve, through-hole, or either
  • Pneumatic connection: M5
  • Material cover cap: PA
  • Material housing: Hard anodised wrought aluminium alloy
  • Material gripper jaws: High-alloy stainless steel


Product

Manufacturer Material ID -
DHPS-20-A-NO
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£594.20
