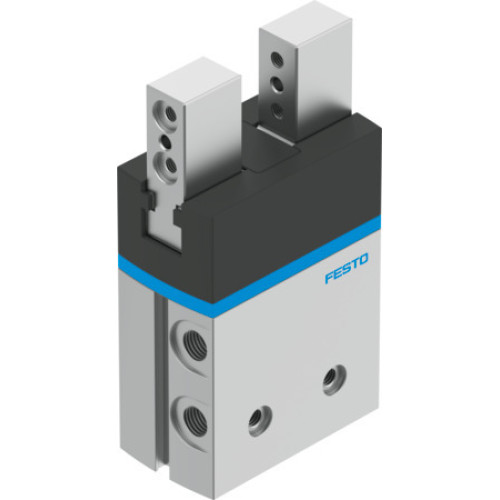

DHPS-25-A-NC Parallel gripper

Manufacturer's No: DHPS-25-A-NC     Manufacturer: Festo
DHPS-25-A-NC Parallel gripper

Availability On Request

£701.10
  • Model: DHPS-25-A-NC
  • Gripper Size: 25
  • Stroke per Gripper Jaws: 7.5 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash ax, ay: 0.5°
  • Max. Gripper Jaw Backlash Sz: 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic

Read more

  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Back-Up: During Closing
  • Design: Lever, Force Pilot Operated Motion Sequence
  • Guide: Plain-Bearing Guide
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 0.4 MPa, 0.8 MPa, 4 bar, 8 bar, 58 psi, 116 psi
  • Max. Operating Frequency of Gripper: 2 Hz
  • Min. Opening Time at 0.6 MPa: 68 ms
  • Min. Closing Time at 0.6 MPa: 52 ms
  • Max. Mass per External Gripper Finger: 350 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 1 (Low Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Li-ion Battery Production: Metals with more than 5% copper excluded
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 3.835 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 350 N
  • Max. Torque at Gripper Mx, My, Mz Static: 30 Nm
  • Lubrication Interval for Guide Components: 10 years
  • Product Weight: 713 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole
  • Pneumatic Connection: G1/8
  • Material: RoHS-Compliant, PA (Cover Cap), Hard Anodised Wrought Aluminium Alloy (Housing), High-Alloy Stainless Steel (Gripper Jaws)


Product

Manufacturer Material ID -
DHPS-25-A-NC
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£701.10
