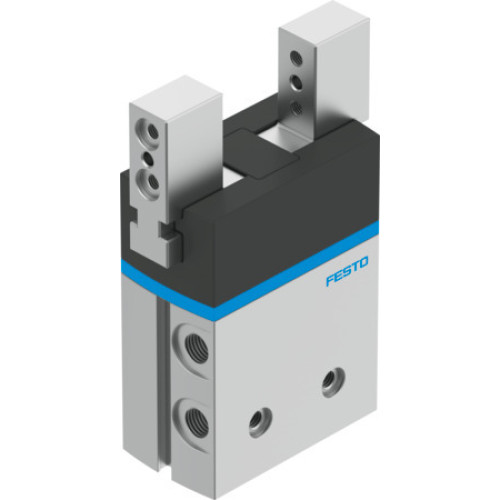

DHPS-25-A-NO Parallel gripper

Manufacturer's No: DHPS-25-A-NO     Manufacturer: Festo
DHPS-25-A-NO Parallel gripper

Availability On Request

£701.10
  • Model: DHPS-25-A-NO
  • Gripper Size: 25
  • Gripper Type: Parallel
  • Gripper Force: Back-up during opening
  • Gripper Jaws: 2
  • Stroke per Gripper Jaws: 7.5 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.5°
  • Max. Gripper Jaw Backlash (Sz): 0.02 mm
  • Rotationally Symmetrical: 0.2 mm

Read more

  • Repetition Accuracy: 0.02 mm
  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Operating Pressure: 0.4 MPa, 0.8 MPa, 4 bar, 8 bar, 58 psi, 116 psi
  • Operating Frequency: 2 Hz
  • Min. Opening Time at 0.6 MPa: 45 ms
  • Min. Closing Time at 0.6 MPa: 78 ms
  • Max. Mass per External Gripper Finger: 350 g
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 3.92 kgcm²
  • Max. Force on Gripper Jaw (Fz) Static: 350 N
  • Max. Torque at Gripper (Mx, My, Mz) Static: 30 Nm
  • Lubrication Interval for Guide Components: 10 years
  • Product Weight: 713 g
  • Type of Mounting: Via female thread, centring sleeve, or through-hole
  • Pneumatic Connection: G1/8
  • Material Cover Cap: PA
  • Material Housing: Hard anodised wrought aluminium alloy
  • Material Gripper Jaws: High-alloy stainless steel
  • Note: Lubricated operation possible; RoHS-compliant materials; Excludes metals with more than 5% copper for Li-ion battery production


Product

Manufacturer Material ID -
DHPS-25-A-NO
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£701.10
