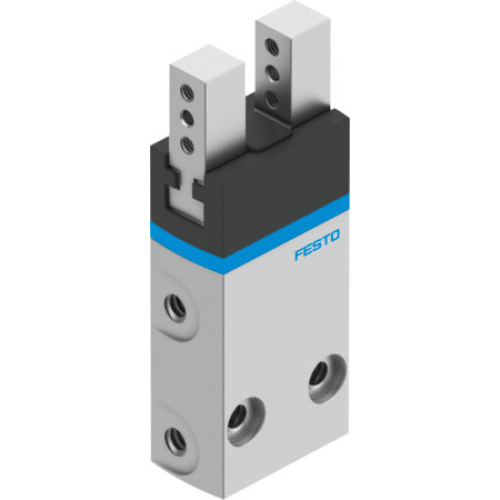

DHPS-6-A Parallel gripper

Manufacturer's No: DHPS-6-A     Manufacturer: Festo
DHPS-6-A Parallel gripper

Availability On Request

£333.02
  • Gripper Type: DHPS-6-A Parallel Gripper
  • Gripper Size: 6
  • Stroke per Gripper Jaws: 2 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash ax, ay: 1 deg
  • Max. Gripper Jaw Backlash Sz: 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic

Read more

  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Back-Up: None
  • Design: Lever
  • Design: Force Pilot Operated Motion Sequence
  • Guide: Plain-Bearing Guide
  • Position Detection: Via Hall Sensor
  • Operating Pressure: 0.2 MPa, 0.8 MPa, 2 bar, 8 bar, 29 psi, 116 psi
  • Max. Operating Frequency of Gripper: 4 Hz
  • Min. Opening Time at 0.6 MPa: 8 ms
  • Min. Closing Time at 0.6 MPa: 17 ms
  • Max. Mass per External Gripper Finger: 10 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 1 - Low Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Total Gripping Force: 30 N (Opening), 25 N (Closing)
  • Gripper Force per Gripper Jaw: 15 N (Opening), 13.5 N (Closing)
  • Mass Moment of Inertia: 0.008 kgm²
  • Max. Force on Gripper Jaw Fz Static: 10 N
  • Max. Torque at Gripper Mx Static, My Static, Mz Static: 0.5 Nm
  • Lubrication Interval for Guide Components: 10 years
  • Product Weight: 19 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Either
  • Pneumatic Connection: M3
  • Material Cover Cap: PA
  • Material Housing: Hard Anodised Wrought Aluminium Alloy
  • Material Gripper Jaws: High-Alloy Stainless Steel
  • Note on Materials: RoHS-Compliant
  • Suitability for Li-Ion Battery Production: Metals with more than 5% copper excluded, exceptions apply


Product

Manufacturer Material ID -
DHPS-6-A
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£333.02
