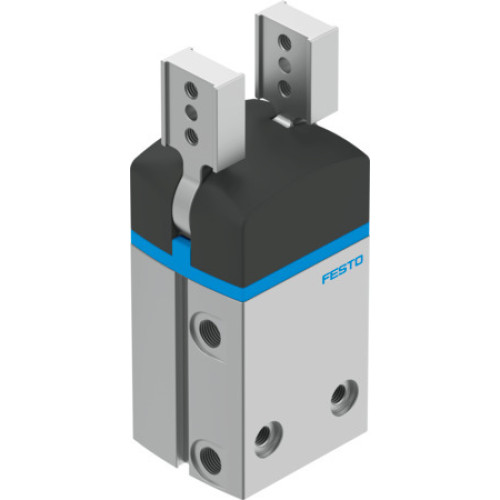

DHRS-40-A-NC Radial gripper

Manufacturer's No: DHRS-40-A-NC     Manufacturer: Festo
DHRS-40-A-NC Radial gripper

Availability On Request

£942.19
  • Model: DHRS-40-A-NC Radial gripper
  • Size: 40
  • Max. replacement accuracy: 0.2 mm
  • Max. opening angle: 180 degrees
  • Repetition accuracy: 0.1 mm
  • Gripper force back-up: During closing
  • Operating pressure: 4 bar, 8 bar
  • Max. operating frequency: 2 Hz
  • Min. opening time at 0.6 MPa: 151 ms
  • Min. closing time at 0.6 MPa: 110 ms

Read more

  • Gripper function: Radial
  • Design: Force pilot operated motion sequence
  • Position detection: Via proximity switch
  • Mass moment of inertia: 4.24 kgcm²
  • Max. force on gripper jaw Fz static: 200 N
  • Max. torque at gripper: 14 Nm (Mx, My, Mz static)
  • Product weight: 844 g
  • Mounting options: Via female thread and centring sleeve, Via through-hole and centring sleeve, Either
  • Pneumatic connection: G1/8
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature range: 5°C to 60°C
  • Materials: RoHS-compliant, Cover cap - PA, Housing - Hard anodised wrought aluminium alloy, Gripper jaws - High-alloy steel
  • Note: Lubricated operation possible, Metals with more than 5% copper excluded from use except for specific components


Product

Manufacturer Material ID -
DHRS-40-A-NC
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£942.19
