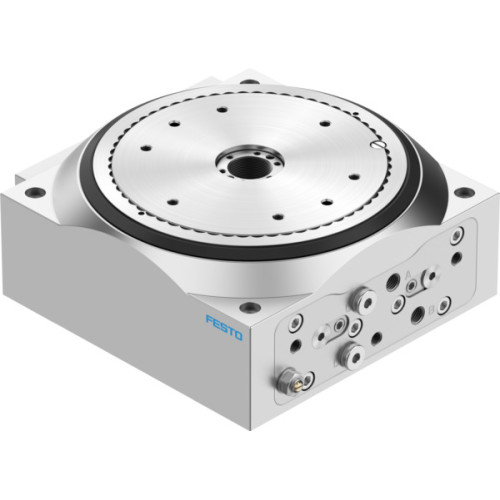

DHTG-140-3-A Rotary indexing table

Manufacturer's No: DHTG-140-3-A     Manufacturer: Festo
DHTG-140-3-A Rotary indexing table

Availability On Request

£3,670.00
  • Model: DHTG-140-3-A Rotary Indexing Table
  • Size: 140
  • Position Sensing: Via Inductive Sensors
  • Parallelity of Poppet Valve: ? 0.04 mm
  • Axial Eccentricity of Poppet Valve: ? 0.02 mm
  • Concentricity of Poppet Valve: ? 0.02 mm
  • Repetition Accuracy of Swivel Angle: ? 0.03 deg
  • Cushioning: Shock Absorber, Hard Characteristic Curve, Adjustable
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting

Read more

  • Design: Gear Coupling, Rack and Pinion, Force Pilot Operated Motion Sequence
  • Operating Pressure: 0.3 MPa, 0.8 MPa, 3 bar, 8 bar
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4], Lubricated Operation Possible
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Storage Temperature: -20°C to 80°C
  • Ambient Temperature: 5°C to 60°C
  • Sound Pressure Level: 70 dBA
  • Degree of Protection: IP54
  • Mass Moment of Inertia: 3000 kgcm²
  • Max. Axial Force Static: 4000 N
  • Max. Pull-Out Torque Static: 300 Nm
  • Max. Radial Force Static: 6000 N
  • Max. Tangential Torque Static: 200 Nm
  • Theoretical Torque at 0.6 MPa: 18.1 Nm
  • Product Weight: 10000 g
  • Type of Mounting: Via Through-Hole and Centring Sleeve
  • Pneumatic Connection: Female Thread G1/8
  • Material: Poppet Valve - Galvanised Steel, Stops - Galvanised Steel, Cover - Wrought Aluminium Alloy, Seals - NBR, TPE-U(PU)
  • RoHS-Compliant Materials


Product

Manufacturer Material ID -
DHTG-140-3-A
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£3,670.00
