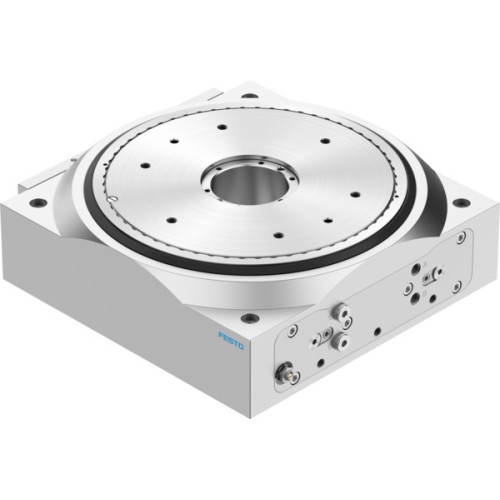

DHTG-220-4-A Rotary indexing table

Manufacturer's No: DHTG-220-4-A     Manufacturer: Festo
DHTG-220-4-A Rotary indexing table

Availability On Request

£5,198.55
  • Rotary indexing table DHTG-220-4-A for position sensing
  • Size: 220 mm
  • Parallelity of poppet valve: ? 0.04 mm
  • Axial eccentricity of poppet valve: ? 0.02 mm
  • Concentricity of poppet valve: ? 0.02 mm
  • Repetition accuracy of swivel angle: ? 0.03 degrees
  • Cushioning: Shock absorber with hard characteristic curve, adjustable
  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Design: Gear coupling, rack and pinion, force pilot operated motion sequence

Read more

  • Position detection: Via inductive sensors
  • Pitch: 4
  • Operating pressure: 0.3 MPa, 0.8 MPa, 3 bar, 8 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Storage temperature: -20°C to 80°C
  • Sound pressure level: 70 dBA
  • Degree of protection: IP54
  • Ambient temperature: 5°C to 60°C
  • Mass moment of inertia: 25000 kg·cm²
  • Max. axial force static: 5000 N
  • Max. pull-out torque static: 500 Nm
  • Max. radial force static: 8000 N
  • Max. tangential torque static: 500 Nm
  • Theoretical torque at 0.6 MPa: 58.9 Nm
  • Product weight: 24000 g
  • Type of mounting: Via through-hole and centring sleeve
  • Pneumatic connection: Female thread G1/8
  • Material: Poppet valve - Galvanised steel, stops - Galvanised steel, cover - Wrought aluminium alloy, seals - NBR, TPE-U(PU)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DHTG-220-4-A
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
