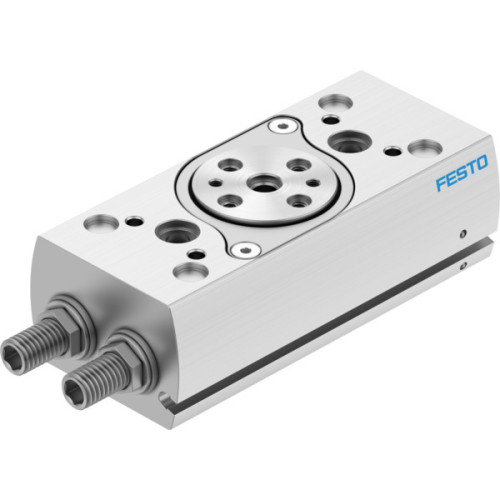

DRRD-12-180-FH-PA Semi-rotary drive

Manufacturer's No: DRRD-12-180-FH-PA     Manufacturer: Festo
DRRD-12-180-FH-PA Semi-rotary drive

Availability On Request

£365.60
  • Semi-rotary drive DRRD-12-180-FH-PA
  • Size: 12
  • Swivel angle: 180°
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: Optional
  • Design: Rack and pinion
  • Position detection: Via proximity switch
  • Operating pressure: 0.3 MPa, 0.8 MPa, 3 bar, 8 bar
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: -10°C to 60°C
  • Theoretical torque at 0.6 MPa: 0.8 Nm
  • Permissible mass moment of inertia: 0.008 kgm²
  • Product weight: 380 g
  • Type of mounting: With through-hole, via female thread, either
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Material drive shaft: High-alloy stainless steel
  • Material seals: NBR, TPE-U(PU)
  • Material housing: Wrought aluminium alloy, smooth anodised


Product

Manufacturer Material ID -
DRRD-12-180-FH-PA
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£365.60
