50141902

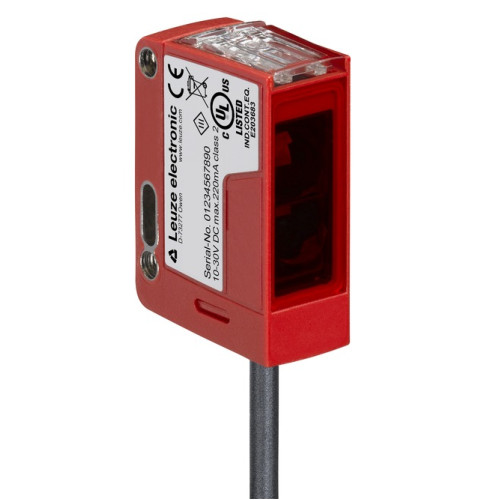

Special version: Teach input; Light source: LED, Red; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Swit

Manufacturer's No: DRT25C.3/LT     Manufacturer: Leuze
Special version: Teach input; Light source: LED, Red; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP

Availability On Request

£285.00
  • Light source: LED, Red
  • Supply voltage: 12-30 V DC
  • Digital switching outputs: 1 Piece
  • Switching output 1: Transistor, Push-pull, IO-Link (PNP/NPN)
  • Switching frequency: 750 Hz
  • Interface: IO-Link
  • Connection: Cable, 2000 mm, 4-wire
  • Design: Cubic
  • Dimensions: 15 mm x 42.7 mm x 30 mm
  • Housing material: Plastic

Read more

  • Operational controls: Teach button
  • Ambient temperature, operation: -10 to 50 °C
  • Degree of protection: IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
DRT25C.3/LT
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
42.7 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Min. reflector distance -
50 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
12 Volt
Reaction time -
0.66 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Teach-In
Switching frequency -
750 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.05 Metre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
15 Millimetre
Leuze

Availability On Request

£285.00
