2CSR275180R3255

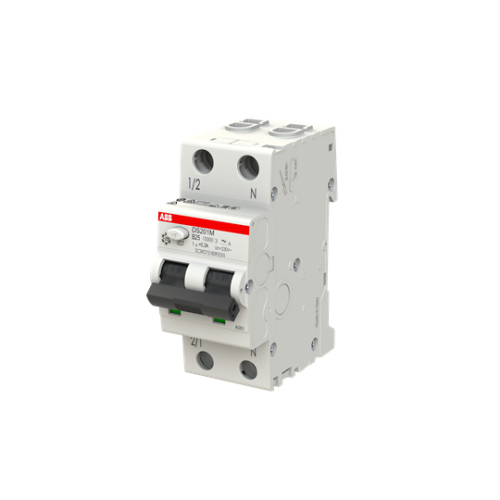

DS201 M B25 A300 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS201 M B25 A300     Manufacturer: ABB
DS201 M B25 A300 Residual Current Circuit Breaker with Overcurrent Protection

Availability On Request

£171.34
  • DS201 M B25 A300 Residual Current Circuit Breaker with Overcurrent Protection
  • 1P+N RCBO in two-modules width
  • Protects single-phase circuits against overload and short-circuit currents
  • Provides protection against various types of earth fault currents
  • Offers protection against indirect and direct contacts


Product

Manufacturer Material ID -
DS201 M B25 A300
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
8.1 Watt
Rated current -
25 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
15 kiloampere
Rated voltage -
240 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
2
ABB

Availability On Request

£171.34
