2CSR275080R3164

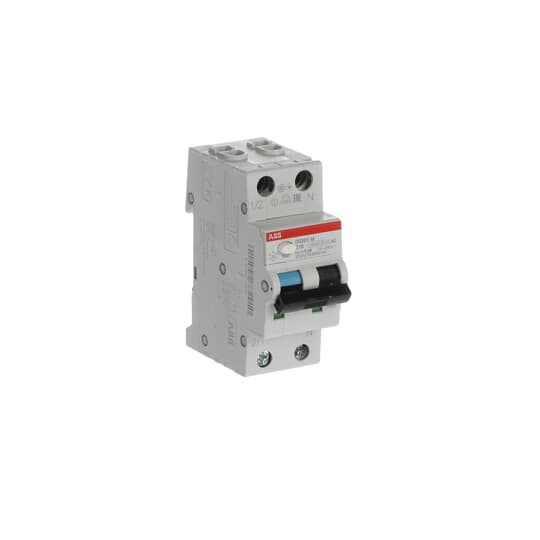

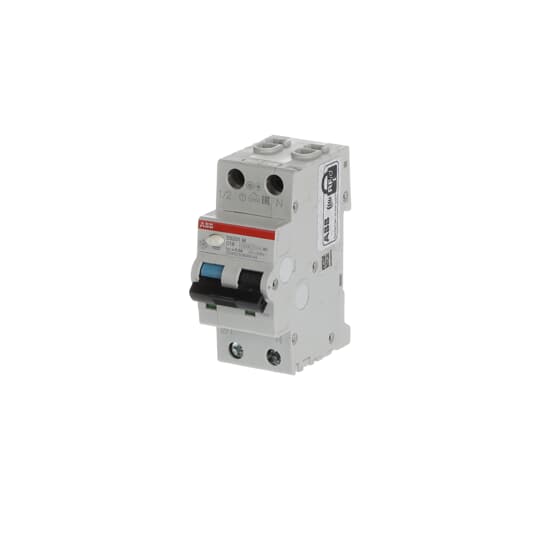

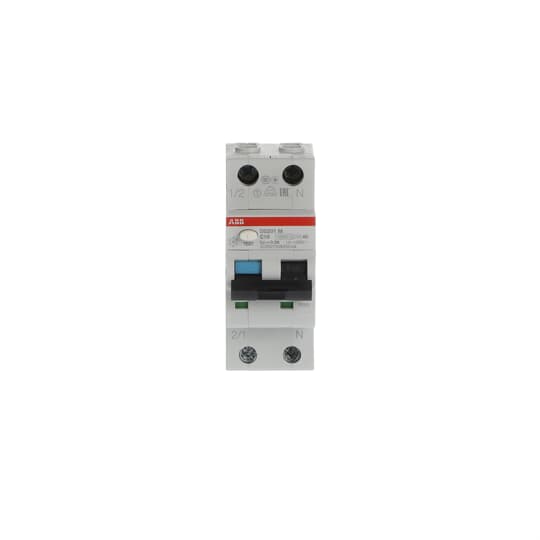

DS201 M C16 AC300 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS201 M C16 AC300     Manufacturer: ABB
DS201 M C16 AC300 Residual Current Circuit Breaker with Overcurrent Protection

Availability Back Order

£129.38
  • Model: DS201 M C16 AC300
  • Type: Residual Current Circuit Breaker with Overcurrent Protection
  • Configuration: 1P+N (single-phase)
  • Width: Two modules
  • Protection against overload and short-circuit currents
  • Protection against sinusoidal alternating earth fault currents
  • Protection against indirect and direct contacts


Product

Manufacturer Material ID -
DS201 M C16 AC300
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
AC
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
4.5 Watt
Rated current -
16 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
15 kiloampere
Rated voltage -
240 Volt
Recess depth -
69 Millimetre
Surge current capacity -
0 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
2
ABB

Availability Back Order

£129.38
