2CSR275580R1404

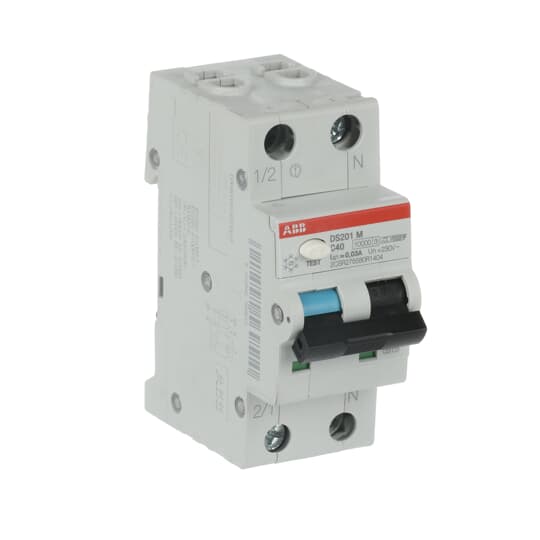

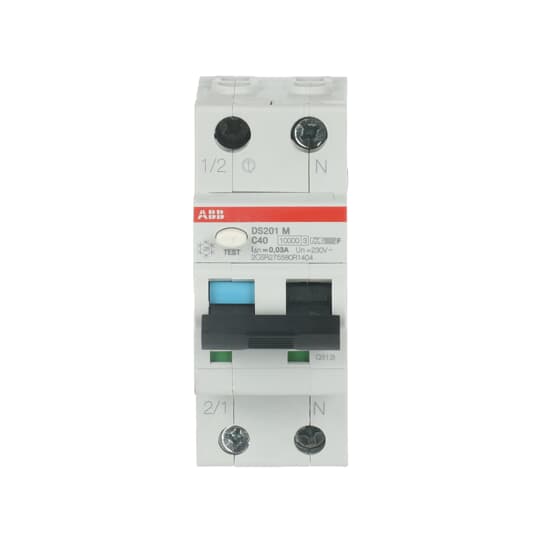

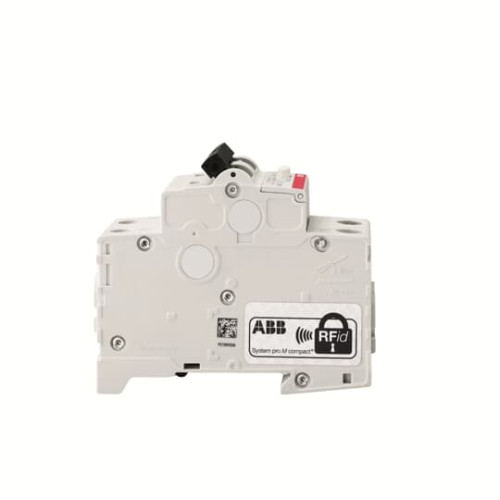

DS201 M C40 F30 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS201 M C40 F30     Manufacturer: ABB
DS201 M C40 F30 Residual Current Circuit Breaker with Overcurrent Protection

Availability On Request

£773.33
  • Model: DS201 M C40 F30 Residual Current Circuit Breaker with Overcurrent Protection
  • Type: 1P+N RCBO
  • Size: Two-modules width
  • Function: Protects single-phase circuits against overload and short-circuit currents
  • Features: Protects against sinusoidal alternating and direct pulsating earth fault currents, indirect contacts, and direct contacts
  • Special Feature: F type with APR features for resistance to unwanted trippings
  • Special Feature: Detects high frequency currents up to 1 kHz
  • Application: Specifically suitable for protecting lines supplying single phase inverters


Product

Manufacturer Material ID -
DS201 M C40 F30
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
F
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
9.1 Watt
Rated current -
40 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
15 kiloampere
Rated voltage -
240 Volt
Recess depth -
69 Millimetre
Surge current capacity -
0 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
2
ABB

Availability On Request

£773.33
