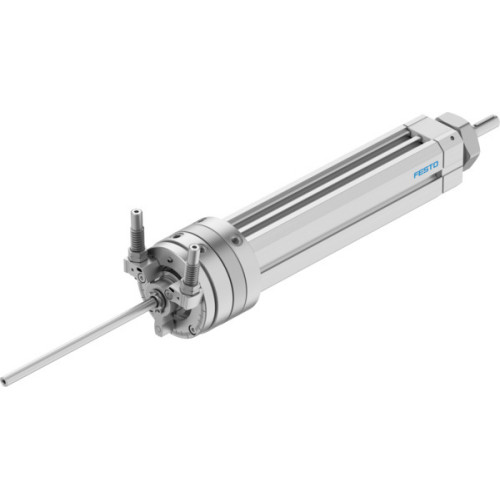

DSL-16-100-270-CC-A-S20-KF-B Swivel/linear unit

Manufacturer's No: DSL-16-100-270-CC-A-S20-KF-B     Manufacturer: Festo
DSL-16-100-270-CC-A-S20-KF-B Swivel/linear unit

Availability On Request

£1,891.23
  • Swivel/linear unit for proximity sensing
  • Independent actuation of rotary and linear movement
  • Rotary movement: 0° - 270° infinitely adjustable
  • Stroke: 100 mm, Piston diameter: 16 mm
  • Swivel angle: 0° - 246°
  • Cushioning: Shock absorber and elastic cushioning rings/plates at both ends
  • Mounting position: optional, Fine adjustment: -3°
  • Mode of operation: Double-acting, Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 2.5 BAR to 8 BAR

Read more

  • Max. impact speed: 0.5 MMS, Max. swivel frequency: 1.5 HZ
  • Rotary angle backlash: 0.05°, Repetition accuracy: 0.1°
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -10°C to 60°C
  • Dynamic load torque: 0.17 NM, Theoretical force: 73.5 N to 103.5 N
  • Theoretical torque: 1.25 NM, Permissible mass moment of inertia: 0.0007 KGY
  • Product weight: 750 G, Basic weight: 750 G, Additional weight per 10 mm stroke: 33 G
  • Type of mounting: Clamped in T-slot or via male thread
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy, Anodised
  • Material seals: TPE-U(PU), Material housing: Wrought aluminium alloy, Smooth anodised
  • Material piston rod: Tempered steel


Product

Manufacturer Material ID -
DSL-16-100-270-CC-A-S20-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
