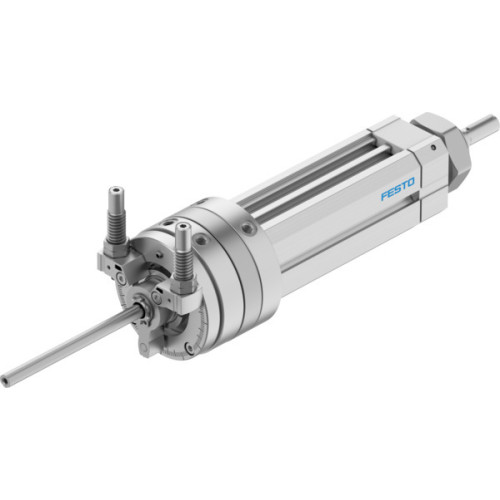

DSL-16-50-270-CC-A-S20-KF-B Swivel/linear unit

Manufacturer's No: DSL-16-50-270-CC-A-S20-KF-B     Manufacturer: Festo
DSL-16-50-270-CC-A-S20-KF-B Swivel/linear unit

Availability Back Order

£1,795.56
  • Rotary movement: 0° - 270° infinitely adjustable
  • Linear stroke: 50 mm
  • Piston diameter: 16 mm
  • Swivel angle: 0° - 246°
  • Cushioning: Shock absorber and elastic cushioning rings/plates at both ends
  • Operating pressure: 2.5 BAR (min), 8 BAR (max)
  • Max. impact speed: 0.5 m/s
  • Max. swivel frequency: 1.5 Hz at 0.6 MPa
  • Repetition accuracy: 0.1°
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class: 1 (Low corrosion stress)
  • Ambient temperature: -10°C to 60°C
  • Dynamic load torque: 0.17 Nm
  • Theoretical force at 0.6 MPa (return stroke): 73.5 N
  • Theoretical force at 0.6 MPa (advance stroke): 103.5 N
  • Theoretical torque at 0.6 MPa: 1.25 Nm
  • Permissible mass moment of inertia: 0.0007 kgm^2
  • Product weight: 750 g
  • Type of mounting: Clamped in T-slot or via male thread
  • Pneumatic connection: M5
  • Material: Wrought aluminium alloy (cover), anodised (cover), TPE-U(PU) (seals), wrought aluminium alloy (housing), smooth anodised (housing), tempered steel (piston rod)

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DSL-16-50-270-CC-A-S20-KF-B
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
