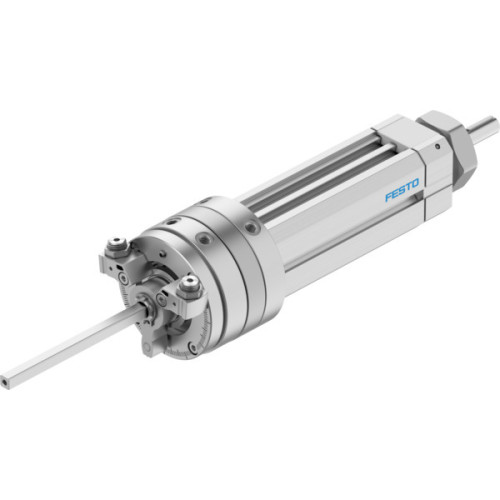

DSL-16-80-270-P-A-S2-B Swivel/linear unit

Manufacturer's No: DSL-16-80-270-P-A-S2-B     Manufacturer: Festo
DSL-16-80-270-P-A-S2-B Swivel/linear unit

Availability On Request

£894.10
  • Rotary movement: 0° - 270° infinitely adjustable
  • Linear stroke: 80 mm
  • Piston diameter: 16 mm
  • Swivel angle: 0° - 272°
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 2.5 BAR to 8 BAR
  • Max. impact speed: 0.5 m/s
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Repetition accuracy: 1°
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class: Low corrosion stress
  • Ambient temperature: -10°C to 60°C
  • Theoretical force at 0.6 MPa, return stroke: 73.5 N
  • Theoretical force at 0.6 MPa, advance stroke: 102.5 N
  • Theoretical torque at 0.6 MPa: 1.25 Nm
  • Product weight: 650 g
  • Type of mounting: Clamped in T-slot or via male thread
  • Pneumatic connection: M5
  • Material: Wrought aluminum alloy cover, anodized, TPE-U(PU) seals, wrought aluminum alloy housing, smooth anodized, tempered steel piston rod


Product

Manufacturer Material ID -
DSL-16-80-270-P-A-S2-B
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£894.10
