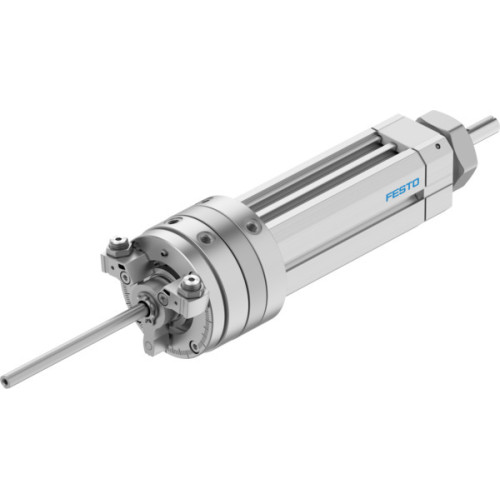

DSL-16-80-270-P-A-S20-KF-B Swivel/linear unit

Manufacturer's No: DSL-16-80-270-P-A-S20-KF-B     Manufacturer: Festo
DSL-16-80-270-P-A-S20-KF-B Swivel/linear unit

Availability On Request

£1,603.04
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 80 mm with a piston diameter of 16 mm
  • Swivel angle range of 0° - 272° with flexible cushioning rings/plates
  • Double-acting vane design with position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 2 Hz at 0.6 MPa
  • Repetition accuracy of 1° with low corrosion stress resistance
  • Dynamic load torque of 0.17 Nm and theoretical force up to 103.5 N
  • Theoretical torque of 1.25 Nm and permissible mass moment of inertia of 0.000035 kgm^2
  • Product weight of 700 g with mounting options in T-slot or via male thread

Read more

  • Pneumatic connection size M5 and materials include wrought aluminum alloy, anodized cover, TPE-U(PU) seals, and tempered steel piston rod


Product

Manufacturer Material ID -
DSL-16-80-270-P-A-S20-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
